Using a Linux L2TP/IPsec VPN server with Windows
Mobile and Pocket PC 2003
Last update: May 21, 2008
1.1 Introduction
I have made the following webpages on using L2TP/IPsec with Linux:
The page you are now reading describes how you can use the built-in VPN
client of Windows
Mobile 6, Windows
Mobile 5.0 and Windows
Mobile 2003 for Pocket PC devices to connect to a Linux Openswan
server. The remainder of
this text will refer to "Windows Mobile", "Pocket PC" or "PPC". I
assume you are already familiar
with setting up Openswan with L2TP/IPsec. If you are not, it's
probably
a good idea to start with reading this
page. It includes information on setting up the
Linux side. The other pages contain specifics on several L2TP/IPsec
clients which are available for desktop Windows versions and Mac OS X.
Preshared keys are easy to configure on Windows Mobile but certificates
are much more secure.
I have made a program P12imprt that
can import a certificate from a file. It greatly simplifies the
process. Unfortunately it seems
that
Openswan has a problem with large
certificates when a Windows Mobile client connects.
Windows Server 2003 does not have this problem (more
information).
I have tested with the Windows
Mobile emulator. I
have also received reports of people who can connect with an actual
Windows Mobile device to an Openswan server.
If you too used this information, let me know if it worked or not,
because I do not own a Windows Mobile device myself!
1.2 Author
The author of this document is Jacco de Leeuw.
Corrections, additions, extra information etc. are much appreciated.
2. Contents
3. Background information
The following platforms ship with a built-in VPN client that supports
both L2TP/IPsec and PPTP:
- Windows Mobile 6 Professional and Standard. (I don't know about
Classic, the smartphone version).
- Windows Mobile 5.0 Pocket PC Premium Edition
- Windows Mobile 5.0 Smartphone Edition (Orange SPV etc.)
- Windows Mobile 5.0 Pocket PC Phone Edition
- Pocket PC 2003 Premium Edition (most of the
recent
Pocket PC devices ship with this version)
- Pocket PC 2003 Second Edition (released in 2004; Premium edition
only?)
- Pocket PC 2003 Phone Edition (O2 XDA, iPAQ 6315 etc.)
- Windows CE .NET 4.2 and higher (although some device vendors may
have left
out the L2TP/IPsec component)
These platforms only support PPTP and do not support L2TP/IPsec:
- Windows Mobile 5.0 Pocket PC Standard Edition
- Pocket PC 2003 Professional Edition (used in the
iPAQ rx3715 and budget models such as the iPAQ rz17xx/19xx series and
the Toshiba e400)
- Pocket PC 2002 and older. (Even if your vendor was nice enough to
release an update from Pocket PC 2002 to Pocket PC 2003, the update
won't add L2TP/IPsec
support. That is because older Pocket PC models may only have 16 MB of
flash memory on board so only the Professional Edition will fit)
- Windows CE .NET 4.1 and older
IPsec is generally regarded to be more
secure than PPTP. There is a catch though: the IPsec client
included with Windows Mobile can only be used in combination with
another protocol called
L2TP. With the built-in client it is probably not possible to use
'pure' IPsec without L2TP. If you really need pure IPsec (for
instance when your VPN server does not support L2TP/IPsec) or when your
Windows Mobile version does not support L2TP/IPsec, then you should buy
a third-party IPsec client.
Windows Mobile supports certificates and Preshared Keys (PSKs) as
authentication methods. Although certificates are more difficult to use
than Preshared Keys (PSKs), they provide additional security (through
RSA) and they
do
not require fixed IP addresses or a PSK that has to be shared by all
users (see also this
overview).
Most VPN clients support importing certificates through PKCS#12.
Windows Mobile 6 supports this
but older Windows Mobile versions do not.
The
"Certificates" application in the System menu can only delete(!)
certificates, not install them. The only approved way (according to
Microsoft) to install certificates and private keys on Windows
Mobile
2003 and 5.0 is through Windows 2000/2003 Server's Certificate Services
in a
process called "web
enrolment". This is not a very attractive option if you want to
generate your certificates on a non-Windows Certificate Authority (CA)
or if you use a non-Windows VPN server such as Linux Openswan. So I
had
to write a program (P12imprt) which allowed
me to import a certificate (and
private
key) from a file. Besides, the procedure for installing a certificate
on Windows Mobile through web enrolment is not very user friendly.
I used the "Microsoft
Device Emulator",
not an actual Windows Mobile device. The Windows
Mobile emulator uses
NAT to piggyback on the network connection of the host computer. The
NAT-T patch for FreeS/WAN (and Openswan / Strongswan) does not support
PSKs, but the native IPsec
implementation
included with kernel 2.6 ("NETKEY") works. Connecting to a
Windows Server 2003 also works.
Back to Contents
4. L2TP discussion
The big question of course is: why would you want to use L2TP with
the Windows Mobile? Why is pure IPsec not enough. The answer is that
you need a mechanism to acquire virtual IP
addresses
from the internal network, so that the client appears to be the
internal network. Examples of such a mechanism are: DHCP, manual
configuration, and L2TP/IPsec.
There are several reasons why one would choose L2TP over pure IPsec.
Most versions of Windows Mobile ship with a
built-in L2TP/IPsec client, so it is free.
Another reason is that L2TP/IPsec is an official
IETF standard. Other users may prefer a
third-party
client, because the vendor will provide support.
Back to Contents
5. Linux configuration
Configuration of the Linux side is basically the same as described
on my main L2TP/IPsec
webpage. There is one gotcha. Windows Mobile only supports
MS-CHAPv1 and MS-CHAPv2 as authentication methods for PPP when
used
with
L2TP/IPsec. It does not support PAP or CHAP (at least for L2TP/IPsec; I
don't know about PAP/CHAP support for modems). However, some (older)
Linux distributions do not support MS-CHAP. More information about this
issue can be found here.
Windows Mobile uses leftprotoport=17/1701 and not leftprotoport=17/0
(as explained here).
Back to Contents
6. Configuration with Preshared Key
The next three sections apply to Pocket PC 2003 / Windows Mobile.
Windows Mobile supports both Preshared
Keys (PSKs) and certificates. Below is the procedure for PSKs. It
is reasonably straightforward because PSKs are fairly easy to use.
(Note that if you use the Windows Mobile emulator to connect to a Linux
VPN
server, you should use a Linux kernel with NAT-T support).
First, you will have to have access to the network, e.g. the
Internet. On an actual Windows Mobile device this may be different or
not even
needed. On the Windows Mobile emulator I had to do the following:

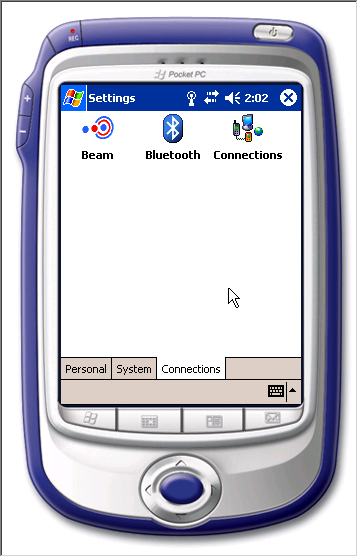

- Open "Connections"
in the Settings menu.
- Tap the "Advanced"
tab. Tap "Configure Network Adapters".

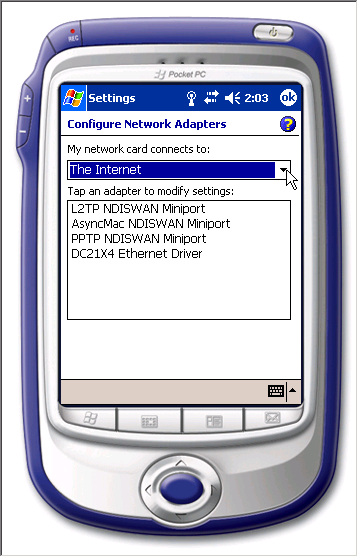

- Select "My network
card connects to: The Internet". Tap "OK".

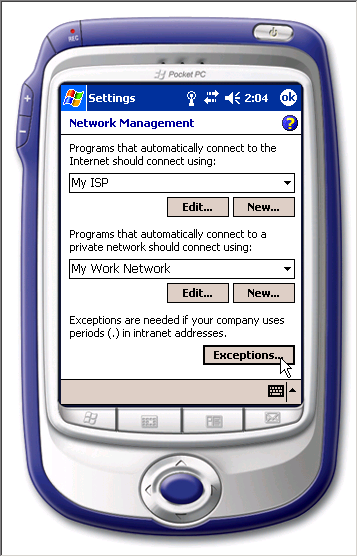

- If your VPN server does not have a fully qualified domain name
("myhost.example.com"), you will need to add an "exception". Tap
"Network Management". Tap "Exceptions".

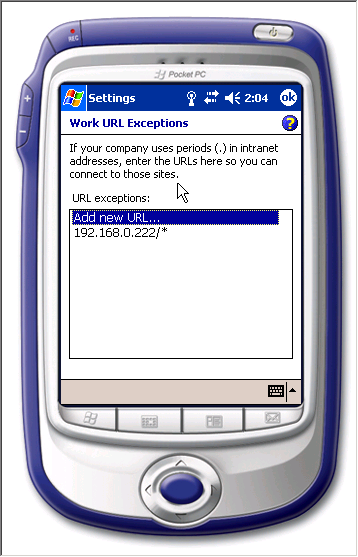

Add the IP address.
Pocket PC will list it as a URL, which is OK. Tap "OK".
At this stage you should be able to access the Internet (or at least
your network), for instance, you can surf to websites with Pocket IE.
Now it's time to actually add the VPN
connection:

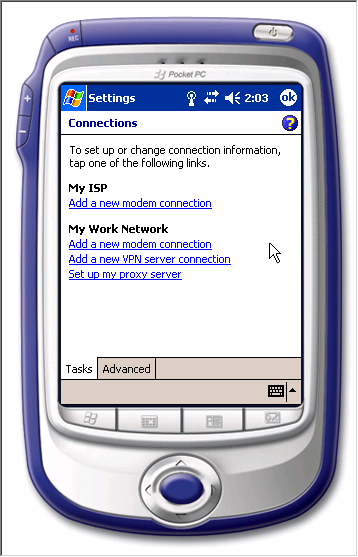

- Tap the "Tasks"
tab.
- Tap "Add a new VPN server connection".

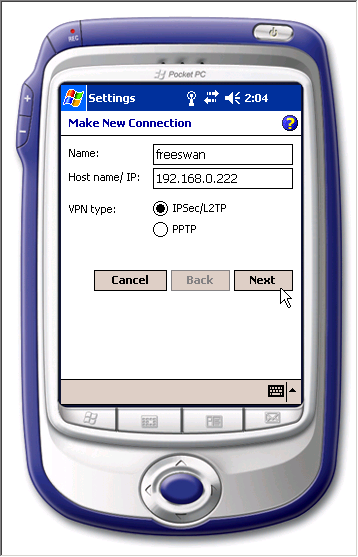

- Enter a name for
this new connection.
- Enter the hostname or IP address of your Openswan server.
- The VPN type should be "IPSec/L2TP".
- Tap "Next".

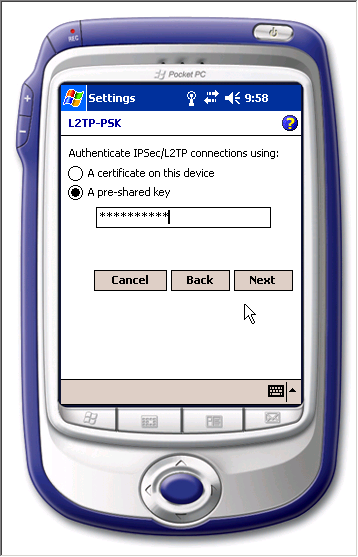

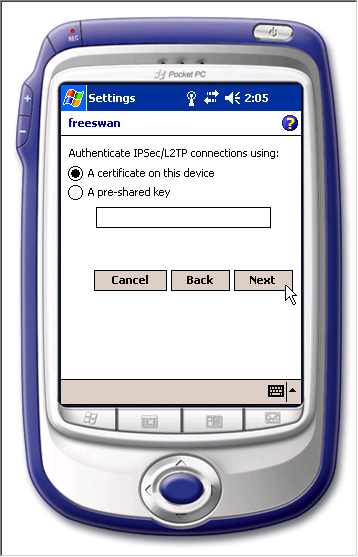

- For a PSK, set "Authenticate
IPSec/L2TP connections using:" to "A pre-shared key". Enter the PSK
in the empty field (this is the same PSK that you configured in ipsec.secrets
on your Openswan server).
- Tap "Next".
- Enter the user name.
This will be used for the PPP authentication.
- Enter the password (for PPP
authentication via MS-CHAP). You can

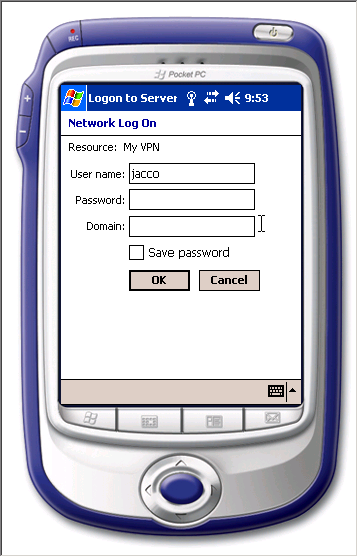

also leave it blank. You will then be prompted for the password
when you connect. (Note: if you enter a password and your device gets
stolen, they can access your L2TP/IPsec VPN! If you leave the password
blank, they can make an IPsec connection but to get any further they
will have to guess your password).
- Optionally enter the Windows domain of the internal network (this
is not your internal DNS domain name). The
same username and password that you entered for PPP authentication
will be used for the domain logon.
- Tap "Finish".
- Tap "OK".

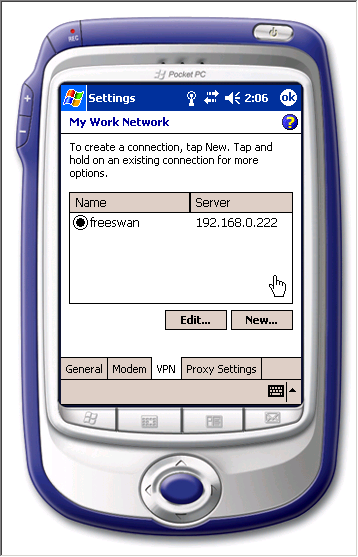

- The newly
created VPN connection should now be listed. You can modify it with
"Edit" or create another one with "New".
- Tap "OK".
The configuration for Windows
Mobile based Smartphones is slightly different. You enter the same
details but the user interface is different due to the Smartphone
paradigm. There are also two extra
configuration options: you have to indicate which network is the
"Source network" and which one is the "Destination network". According
to Microsoft, these are typically "The Internet" and "The Work
network".
There might be a way to configure all this automatically using a
CAB file
or an XML
template for the Connection Manager. I have not looked into this.
Back to Contents
7. Starting a VPN connection
Any hostname with a dot in it is considered to be on the local network.
In many cases (testing for instance) this is not want you want. In such
cases, you will need to add the IP address to exceptions, as mentioned
above.
Here's how to set up the L2TP/IPsec connection on Pocket PC 2003 (see below for Windows Mobile 5.0,
Windows Mobile 6 and
Smartphone):
- Be sure that the "Connections" applet that you started from the
Settings menu has been closed (by tapping "OK" several times). If it is
still running, the connection you created in the previous section may
not have been saved.
- Multiple
VPN connections can be configured. But you will have to specify
which one of them
will be used for actually making a VPN connection.
- Tap the two arrows at the top of the screen that point away from
eachother.

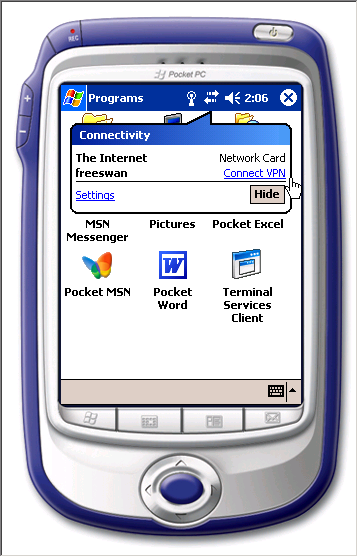

- A new window
called "Connectivity" should appear. The name of the currently
active
VPN connection should be listed.
- Tap "Connect VPN". The VPN client will now dial out.

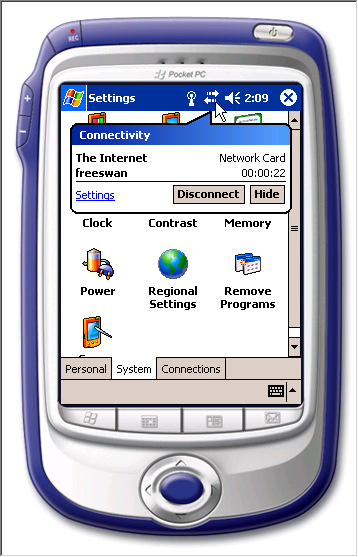

- If the VPN connection works, you should see a timer indicating how long
the connection is up.
- You can hide the "Connectivity" window and later recall it by
tapping the arrows at the top of the screen.
- You can disconnect the VPN connection by tapping "Disconnect" in
the "Connectivity" window.
The VPN client will also dial out automatically when you use a network
application. For instance, when you enter a URL address in Pocket
Internet Explorer. Or use the Terminal Server client, etc.
The procedure for Windows
Mobile 5.0 and Windows Mobile 6 is slightly different (it also works on
Pocket PC 2003):
- Do not close the "Connections" applet. Open it again if you had
closed it.
- Tap and hold the VPN connection that you created in the previous
section.

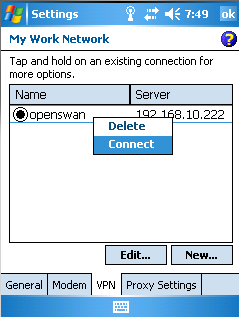

- You should now see a context menu with
"Delete" and "Connect".
- Select "Connect". The VPN client will now dial out and connect to
the server.
- If the VPN connection works, you do not see any indication. But
if you tap two arrows at the top of the screen that point away from
eachother a "Connectivity"
window will appear.
- In this "Connectivity" window you see a timer indicating how long
the connection is up. You can close the "Connections" applet if you
want.
- You can hide the "Connectivity" window and later recall it by
tapping the arrows at the top of the screen.
- You can disconnect the VPN connection by tapping "Disconnect" in
the "Connectivity" window.
The procedure for Windows
Mobile based Smartphones is again different:
- (It is even so different that I don't know how to do it!
Microsoft
has made it completely
non-intuitive to start a connection. It probably has something to do
with the "Source
network" and the "Destination network" mentioned above. If you know how
to do it, contact me!)
- The following was provided to me by Marko Clemente. Enable your
wireless connection. Edit the settings of your wireless connection and
select "Private/Work
network" (not: "Internet"). Create your L2TP/IPsec connection as
described in the previous section. At the "Connects from:" setting,
select "Work". At the "Connects to:" setting, select "The Internet".
You may also have to use an IP address as your server
address, not a FQDN.

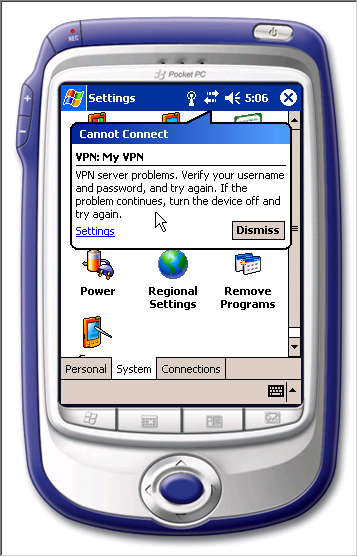

If the connection fails or a time-out occurs you get a fairly generic error window: "VPN
server problems. Verify your username and password, and try again. If
the problem continues, turn the device off and try again". (Typical
for
Microsoft! :-) This is a catch-all error message and its cause can be
anything: a missing certificate, wrong
username, wrong password, VPN server cannot be found, incorrect IP
address, hostname does not resolve etc. There is very little logging
and error reporting on Windows Mobile devices. It's probably
easier to start by examining the logs on the VPN server. You could even
follow Microsoft's advice and turn the device off and on. One user
reported that soft-resetting the Windows Mobile device may resolve the
problem
(remember: a hard reset wipes all your data so that is probably not
what you are looking for).
If you find that the VPN is disconnected immediately after you try to
access network resources on the VPN, you may have got to fiddle with
your device's Connection Manager settings. The Connection Manager
that Microsoft implemented has a flawed logic and defies Internet
routing standards. It has led
many people to despair. Some tips are available on the Pocket
PC Magazine website.
Back to Contents
8. Configuration with
certificates
8.1 Pocket PC 2003, Windows Mobile 5.0 and Windows Mobile 6
Configuring an L2TP/IPsec connection with authentication based on
certificates works nearly the same as with a PSK. The difference is
that
you need to install a personal certificate and a root certificate on
the client. You also need to install a server certificate and a root
certificate on the Openswan server. The VPN connections on both the
client and the server have to be configured for
authentication based on these certificates.
In the settings of your VPN connection, set "Authenticate IPSec/L2TP
connections using:" to "A certificate on this device". The VPN
client will figure out automatically which certificate to use, should
you have installed multiple certificates. The Openswan server has to be
configured for certificate
authentication as well.
Next, you will need to install a certificate to your Windows Mobile
device.
There are three ways of installing private keys and personal
certificates on Windows Mobile:
Back to Contents
9. No AES, DPD or
IPCOMP
Pocket PC 2003 and Windows Mobile 5.0 do not support AES. They will
propose ISAKMP and IPsec SAs with 3DES encryption.
Windows Mobile 6 has added support for AES. It is supported with
SSL/TLS, WiFi (WPA2), Storage Card (i.e. external flash memory)
encryption and "Data Protection Application Programming Interface"
(DPAPI). Alas, Microsoft did not see it fit to support AES with
L2TP/IPsec VPNs...
DPD and IPCOMP are also not supported.
Back to Contents
10. Network ActiveSync and
connecting
to Exchange
Once your VPN connection is working you can use it as if you were
connected directly to your internal network. For instance, you could
use it for ActiveSync or Exchange.
You can probably use the L2TP/IPsec connection to Activesync with a
server on the internal network. I have not tested this. According to Certicom,
it should work. There is also an article by Al
Jarvi
that describes how to do it over a PPTP VPN. The procedure for an
L2TP/IPsec VPN should be very similar.
You can also use the L2TP/IPsec tunnel to connect to an Exchange server
(or any other messaging server) behind the Linux VPN server. In my
opinion this is more secure than forwarding SSL (port 443) to the
webserver / mailserver for webmail / ActiveSync / Outlook Web
Access / Outlook Mobile Access / whatever.
Back to Contents
11. Windows Networking (WINS etc.)
Windows Mobile supports the SMB / CIFS protocol ("Windows Networking").
It has a built-in client which can be used through the L2TP/IPsec
tunnel. For instance, if you open File Explorer and connect to a
network path (e.g. "\\SERVER\share") then the client will contact the
fileserver SERVER and connect to its share.
I have not done extensive testing. When I used the VPN to connect to a
remote Windows Server 2003 the Windows Mobile device showed the
filenames in File Explorer but it got into some kind of endless loop.
If you don't intend to use Windows Networking you will find
that Windows Mobile generates quite a bit of SMB network traffic. If
you have to pay for this traffic (e.g. because you are on a GPRS or
UMTS connection) then it appears that you can disable this spurious
Windows Networking traffic by removing all ms-wins
parameters in /etc/ppp/options.l2tpd. I did not see an option
in Windows Mobile itself to disable it (on desktop Windows you remove
the "Client for Microsoft Networks").
See also the general remarks on Windows Networking on my main VPN page.
Back to Contents
12. Discussion
12.1 The x86 Windows Mobile emulator
There is an older Windows Mobile emulator, the one included with eMbedded
Visual C++ 4.0. It has a feature to
save the emulator's state,
so that
you can continue later (e.g. when you want to save the certificate that
you got through web enrolment). However, this is badly implemented.
When you close the emulator, you should select "Save emulator state"
instead of "Turn off emulator", which is the default. A saved state
file
with the extension .vsv will then be created in
"/Documents and Settings/yourusername/Application Data/".
Reloading this state, however, is more difficult than it should be. You
need to edit the emul.cmd command included with the Windows
Mobile SDK
and
add a parameter /VMID to the (already very long) command line:
PBEmulator.exe /LOTS /OF /PARAMETERS /VMID
"{BA6E5257-4322-4343-ABE9-3D8328399F9C}"
Where the number BA6... is the GID of the saved state file
with extension .vsv. Fortunately, this has been fixed in the
emulator included with Visual Studio 2005 and the Microsoft Device
Emulator which is
also available separately. In the new emulator it is much easier to
load and save
emulator states.
12.2 MTU problem?
I had the following problem in the x86 based Windows Mobile 2003
emulator. It appears that this issue has been resolved in either the Microsoft
Device Emulator or Windows Mobile 5.0. I don't own a real Windows
Mobile device so if you have this problem with certificates, let
me know.
The IPsec connection fails in some
instances when connecting to Openswan or the kernel 2.6 IPsec
implementation in combination with certificates. Windows Server 2003
does not have this problem. I have not
yet been able to pinpoint the exact cause. Factors that probably
contribute to this problem:
- a "large" user certificate and/or CA certificate
- NAT-Traversal
- fragmentation
The sample certificate included in my P12imprt
zipfile contains very short "Distinguished Names" (USR, CACN etc.).
With this particular certificate the connection is set up without
problem. Larger names (say, about 75 characters in the CA name, which
is
105 bytes in ASN.1 encoding) do not work. However, I am using
NAT-Traversal because that is what the Windows Mobile emulator uses. It
may
well be that the problem does not occur on a real Windows Mobile
2003 device
when
it is not behind a NAT device. The problem seems to occur when the
packets sent by Windows Mobile 2003 are fragmented. Windows Mobile 2003
does not
send these to UDP port
4500 on the Openswan but a floating port to which Openswan is not
listening. When the same (large) certificate is used on Windows 2000
Professional, the L2TP/IPsec connection works fine: Windows 2000 sends
all fragments to port 4500 and it floats its own sender port. This
shows
that there is nothing wrong with the certificate itself. It tried
Openswan's "overridemtu=" parameter but it did not seem to
have any effect.
The symptions that you may see are for instance reports of "no suitable
connection" and "malformed packet". Because of the fragmentation,
Openswan receives only parts of the packet. Thus the CA certificate
name in the Certificate Request payload may for instance be garbled.
When you increase the debuggin by setting plutodebug="parsing"
in ipsec.conf, you might see the actual error message: "error in DN
parsing: RDN is not a SET". Openswan tries to decode the ASN.1
string sent by Windows Mobile 2003 but the string is garbled, so it
fails.
The problem described above occurs both with FreeS/WAN and
NETKEY+Openswan (i.e. pluto). I have not tried NETKEY with the KAME
utilities
(racoon). So I don't know if the cause of the problem is in the IKE
daemon or somewhere else.
12.3 Assorted remarks
The web enrolment procedure mentioned above is very convoluted. The
import utility approach seems better (if you prefer to use a
non-Windows
CA and VPN server).
One final remark: after the Windows Mobile L2TP/IPsec client has
logged in, I
noticed that it tries repeatedly to resolve the hostname isatap.
ISATAP is an IPv6 tunnelling mechanism for IPv4 networks (kudos to
Microsoft for supporting IPv6 in Windows Mobile). But if you don't use
IPv6 this may generate a bit of network traffic. Perhaps adding a dummy
ISATAP hostname to your DNS will fix this?
One interesting thing I noticed is that Windows
Mobile 5.0 and higher stop their IPsec daemon after a disconnect or a
timeout. Nmap confirms that
nothing is listening
on UDP port 500 and 4500, which increases security. Not even Windows XP
does this!
Back to Contents
13. Third-party clients for Windows Mobile
There are other VPN clients for Windows Mobile. None of them support
L2TP/IPsec. Pocket PC 2003 and/or later Windows Mobile versions are not
always
supported.
Some clients may have the restriction that they are only to be used
with a VPN server of a
particular vendor. Using a third-party client may have advantages over
the
built-in
client. Getting technical support from a specialised vendor, for
instance.
Open source clients:
Closed source clients:
Back to Contents
14. Revision history
May 24, 2007: Added some info on Windows Mobile 6. No AES
with L2TP/IPsec.
Oct 29, 2006: Saw no MTU/fragmentation problem with WM5,
NAT, large certs and the new 2.0 emulator.
Oct 17, 2006: Successfully tested on WM5 emulator (got a
faster CPU). Added references to NetMotion and Bluefire.
May 2, 2006: There is now an OpenVPN port for Windows
Mobile under development.
Mar 21, 2006: Finally I found out how to connect on WM5.0
(thanks Kiko!). It times out on the emulator, though.
Feb 9, 2006: P12imprt available. Import PKCS#12
certificates to Pocket PC 2003 or Windows Mobile 5.0!
Feb 5, 2006: PFXimprt available. Import PKCS#12
certificates from a file to Windows Mobile 5.0!
May 12, 2005: Windows
Mobile 5.0 announced. Supports PFXImportCertStore().
New emulator
released.
Oct 14, 2004: Certicom Movian will be discontinued.
Jun 12, 2004: NAT-T with PSK may work when the native
kernel 2.6 IPsec is used.
Jun 9, 2004: New MS-CHAP parameter.
Feb 23, 2004: Professional Edition (iPAQ 1900 series,
upgraded PPC2002 models) does not support L2TP/IPsec.
Feb 3, 2004: Pocket PC 2003 probably does support PAP/CHAP for
dial-up Internet, but not for L2TP/IPsec.
Jan 17, 2004: Problem does not occur with Windows Server 2003.
Fragmentation/NAT-T problem? PPC sends packets to floating port(!)
Jan 7, 2004: Problem does not occur when certificate is used for
user auth in Pocket IE. Makes a bug in Crtimprt less likely.
Dec 28, 2003: Everything works! But a problem occurs when the DN in
the CA cert is longer than about 75 characters. Bug? MTU problem?
Dec 23, 2003: Managed to import client and CA certificates. But
PPC sends a partly mangled Certificate Request payload :-(
Nov 22, 2003: Managed to import private key (PVK). Importing
certificates remains to be done.
Nov 9, 2003: Received reports from 2 different persons who have
implemented key import programs but they are not allowed to release
them
:-(.
Nov 8, 2003: Described outline for private key import program.
Nov 7, 2003: Forgot to mention how to copy over certificates
from Windows Server to Openswan.
Nov 6, 2003: Page created. Initial success with certificate
obtained through web enrolment.
Jacco de Leeuw
